A Digital Workflow for Automated Assessment of Tumor-Infiltrating Lymphocytes in Oral Squamous Cell Carcinoma Using QuPath and a StarDist-Based Model

The search for reliable prognostic markers in oral squamous cell carcinoma (OSCC) remains a critical need. Tumor-infiltrating lymphocytes (TILs), particularly T lymphocytes, play a pivotal role in the immune response against tumors and are strongly correlated with favorable prognoses. Computational pathology has proven highly effective for histopathological image analysis, automating tasks such as cell detection, classification, and segmentation.

In the present study, we developed a StarDist-based model to automatically detect T lymphocytes in hematoxylin and eosin (H&E)-stained whole-slide images (WSIs) of OSCC, bypassing the need for traditional immunohistochemistry (IHC). Using QuPath, we generated training datasets from annotated slides, employing IHC as the ground truth. Our model was validated on Cancer Genome Atlas-derived OSCC images, and survival analyses demonstrated that higher TIL densities correlated with improved patient outcomes.

This work introduces an efficient, AI-powered workflow for automated immune profiling in OSCC, offering a reproducible and scalable approach for diagnostic and prognostic applications.

Introduction

Oral squamous cell carcinoma (OSCC), while a relatively rare neoplasm, poses significant clinical challenges due to its aggressive nature, low response rates to standard therapies, and high levels of drug resistance ^1-3. Several studies have emphasized the tumor microenvironment’s (TME) pivotal role in regulating tumor progression and therapeutic responses. Interactions between tumor cells and components of the TME, particularly immune cells, are critical in shaping these processes ^4,5. In this context, innate immunity acts as the first line of defense, followed by adaptive immunity, where lymphocytes play an active role. In OSCC, T lymphocytes influence tumor behavior, therapeutic outcomes, and patient survival ^6,7.

Given their central role in antitumor responses, the accurate detection and quantification of tumor-infiltrating lymphocytes (TILs) is crucial. The presence of TILs is strongly associated with improved prognosis and enhanced responses to immunotherapies ^8-11. Traditionally, T-cell identification relies on immunohistochemistry (IHC) using specific antibodies to detect relevant lymphocyte subsets. However, this approach is prone to significant inter- and intra-observer variability, and manual quantification can be labor-intensive and time-consuming ¹².

Integrating artificial intelligence (AI) offers a promising solution to these challenges. Advances in digital pathology, supported by whole-slide imaging (WSI), have enabled cell detection and quantification automation. Deep learning techniques, particularly convolutional neural networks (CNNs), have shown exceptional accuracy in analyzing hematoxylin and eosin (H&E)-stained slides. These methods provide a viable alternative to IHC, delivering reproducible and standardized metrics while reducing manual effort and observer bias ^13,14.

Our study aims to develop an AI-powered tool for the automated segmentation and detection of lymphocytic T cells in WSI of OSCC stained with H&E. By streamlining the diagnostic workflow, this approach seeks to improve diagnostic efficiency and precision. Leveraging AI and WSI technology, we aim to enhance the clinical decision-making process, enabling pathologists to perform immune profiling more accurately and efficiently. Furthermore, our work builds upon a previously established strategy for predicting CAF-1/p60-positive cells in OSCC WSI-H&E tumor tissue ¹⁵

Our approach to computational pathology emphasizes creating user-friendly diagnostic tools that aid in risk stratification and support more personalized treatment planning for OSCC patients.

Materials and methods

SLIDES PREPARATION

We selected 10 OSCC formalin-fixed paraffin embedded (FFPE) cases from the archive of the Pathology Unit of the Department of Advanced Biomedical Sciences of the University of Naples “Federico II.” To ensure precise detection of T cells, we performed immunohistoochemical (IHC) staining for the T cell marker CD3 to build a robust ground truth. We restained previously H&E-stained tissue sections with CD3-IHC to guarantee more accurate segmentation masks, as described in ¹⁵.

Briefly, H&E stained and digitized tissue sections were destained and immunostained with anti-CD3 antibody. We digitized H&E and IHC slides using a Leica Aperio AT2 scanner at 40x magnification. We performed immunostaining with the Ventana Benchmark Ultra automatic stainer (Ventana Medical Systems Inc., 1910 Innovation patk drive Tucson, AZ, USA) using the rabbit monoclonal anti-CD3 antibody (2GV6), according to the manufacturer’s instructions.

Before digitizing, we cleaned the slides with sterile gauze and 90% ethanol to eliminate any impurities that might affect our analysis.

QUALITY CHECK: HISTOQC

We utilized HistoQC, an open-source quality control (QC) tool for digital pathology slides, to automate the quality assessment of whole-slide images (WSIs) ^16,17. HistoQC efficiently detects and classifies artifacts while calculating visual metrics associated with the images. Its modular pipeline allows for the analysis of image properties such as color, brightness, and contrast, generating visual masks and metadata to identify areas of interest and anomalies within the datasets.

The tool produces masks that can be overlaid on the original images, with specific colors denoting regions of interest:

• Pink masks: Indicate artifact-free, computable areas suitable for AI model training and inference.
• Green masks: Highlight regions compromised by significant artifacts excluded from further analysis.
• For our study, we exclusively used the pink-masked regions of interest (ROIs) in all subsequent analyses.

DATASET GENERATION

After quality control, we generated the training and validation sets with QuPath (v. 0.5.1 version) ¹⁸ We created a project and inserted our H&E-stained WSIs and the paired CD3-stained ones. We registered the paired images with an affine registration by using a QuPath extension (https://github.com/qupath/qupath-extension-align. Last accessed 06/08/2024) (Fig. 1).

Once we aligned H&E with the paired IHC, we performed a positive cell detection by the mean of DAB OD features. Then, we exported the entire set of detected objects from IHC in geojson format and reimported them onto the H&E images. We obtained CD3-positive segmentation masks that perfectly overlapped the H&E-stained cells (Fig. 2).

Two pathologists visually examined the samples to validate the annotated images (SS and FM). After this check, we used a Tile Exporter groovy script to export 256x256px tiles and the corresponding label images. We modified the Groovy script on the QuPath documentation web page (“https://qupath.readthedocs.io/en/stable/,” last accessed: 10/04/2024). The full script edit is available in Supplementary I.

MODEL TRAINING

We built the StarDist-based model as described ^19-21 (“https://github.com/stardist/stardist”; last access: 04.03.2024).

StarDist is a Python package implementing star-convex object detection for 2D and 3D images. It is a deep learning-based method for nuclei/cell detection and segmentation in microscopy images. The general approach for 2D images involves training a model to densely predict the distances to the object boundary along a fixed set of rays and object probabilities. This produces an overcomplete set of candidate polygons for a given input image. The final result is obtained via non-maximum suppression (NMS) of these candidates. In particular, it recognizes round objects such as nuclei or cells through the “star-convex polygons” system to represent their edges. Each pixel is associated with the star-convex polygon defined by the distances from the pixel to the object’s edge along the various predefined radial directions.

The training was conducted on a Google Colab virtual machine with a V100 GPU with 16 GB of VRAM and 51 GB of RAM. All coding and statistical analyses were performed using Python 3.10.

Our model was trained using 43908 objects (i.e., CD3 positive cells) in 7750 tiles of 256x256 pixels. We split the dataset into train/validation/test using a cross-validation method. All the details of the training are shown in Supplementary VI. The full code used to train the model is available upon request at: https://github.com/Frank19782023/paperCD3OSCC

MODEL TESTING

We tested our model to detect and segment CD3⁺ T cells in H&E-stained WSI on test OSCC samples stained with H&E and CD3. We then validated our model visually in QuPath, comparing the prediction results with the IHC.

Figure 3 (B and D) shows the model-based prediction on H&E, with the recognized lymphocytes highlighted in yellow and validated by IHC (A and C).

MODEL INFERENCE WITH QUPATH

Once the model was built, it was converted into portable formats such as Protocol Buffers (.pb) format and ImageJ-compatible zip files. This conversion was performed in an Anaconda virtual environment using TensorFlow 1.15 and tfonnx to ensure compatibility and ease of use across various platforms.

DATASET FOR MODEL INFERENCE

We used a dataset derived from the Cancer Genome Atlas (TCGA) to infer our model, precisely 50 cases of OSCC stained with hematoxylin and eosin (Tab. II.). Using a modified Groovy script, we used QuPath with the StarDist extension (https://github.com/qupath/qupath-extension-stardist. Last accessed 06/08/2024) to infer the model on these 50 WSI (details in Supplementary II).

Our goal was to identify T lymphocytes in both the tumor and stroma. Before applying the script, we normalized all WSIs using QuPath’s auto-parameters for color normalization and performed manual annotations. We annotated the invasive tumor margin and the central tumor region, while for the stroma we focused only on regions near the invasive tumor margin and the central tumor region. Using these annotations, we applied the script to extract the quantity of T lymphocytes.

DEFINITIONS OF “COLD” AND “HOT”

We first determined the percentage of positive cells. Using the Cell Detection function of QuPath, we calculated the total cell count of both tumor and stroma in the specified ROIs. We further predicted the T lymphocytes by applying our model. From the total number of T lymphocytes identified, we derived a percentage using the following formula:

Using the percentages, cutoffs were defined using the Cutoff Finder software ²², an online accessible platform for data optimization and visualization (available at the link: https://molpathoheidelberg.shinyapps.io/CutoffFinder_v1/). The cutoffs were calculated on the basis of the median values to distinguish between high and low T lymphocyte expression. This methodology allowed us to determine the cutoff for T cells infiltrating the intratumoral area and for T cells in the stroma.

STATISTICAL ANALYSES

Statistical analysis was performed using the latest version (v29) of IBM SPSS Statistics for Windows (IBM Corp., Armonk, NY, USA). Survival data present in the TCGA were used for this purpose. First, we created Kaplan-Meier survival curves to estimate patient survival in the different groups (high and low T-cell expression). The curves were compared using the Log-rank (Mantel-Cox) test to determine if the differences were statistically significant (p < 0.05).

A Cox regression model was used to examine the effect of the selected variables on patient survival. An Omnibus test was performed to assess the model’s overall significance. It was also checked whether adding new variables to the model causes a change in the Chi-square test that significantly improves the model. Once the optimal model was identified, the regression coefficients of the included variables were interpreted.

A p-value less than 0.05 was considered statistically significant.

Results

QUALITY CHECK

Analysis by HistoQC allowed us to distinguish computable regions from regions compromised by artifacts effectively. Figures 4 and 5 show that the pink-masked tissue portions represent the areas free of artifacts; conversely, the green-masked regions contain artifacts such as folds or altered staining. WSIs from the TCGA dataset showed a higher frequency of “unusable” regions than the in-house prepared images.

MODEL BUILDING

We created our training dataset once the WSIs were prepared and annotated, as described in the Materials and Methods and Supplementary VI. The WSI images were tiled in 256x256px tiles, generating 7750 pairs (H&E and the correspondent mask). For a total of 15,500 tiles, each pair included one tile from the source image and the matching segmentation mask. We obtained 43,908 objects (i.e. CD3 positive cells) that were finally used to train the model. Figure 6 shows an example of an image tile with its segmentation mask.

After threshold optimization, the model’s optimized values were as follows: {‘prob’: 0.4097943603992462, ‘nms’: 0.5}. The intersection over union (IoU) parameter was used to determine which dataset values matched the computed threshold. The optimal IoU threshold chosen is thresh = 0.4. This allows us to balance precision, accuracy, and recall best, thus maintaining a low number of false negatives and false positives. The model’s performance was evaluated with the creation of a graph where the performance of our model is evaluated against a series of threshold values, as shown in Supplementary III.

INFERENCE OF THE TRAINED MODEL

After building the model, we inferred WSIs downloaded from TCGA (TCGA-HNSC project, link:https://portal.gdc.cancer.gov/).

We analyzed 50 cases of OSCC stained with hematoxylin and eosin. The objective was to evaluate the effectiveness of our model in recognizing T lymphocytes by comparing the data extracted from the model’s application with patient outcomes provided by TCGA. As described in the Materials and Methods the analysis was conducted using QuPath (Fig. 7).

As described in the Materials and Methods section (2.8 Definitions of “Cold” and “Hot”), the following categories were defined (Fig. 8):

In the intra-tumor analysis, tumors were classified based on TIL percentages as follows:

• Intratumoral TIL Cold: Tumors with a TIL percentage below the median (4%).
• Intratumoral TIL Hot: Tumors with a TIL percentage above the median (4%).
• In the stroma analysis, regions were classified based on lymphocyte T percentages as follows:
• Stroma Cold: Regions with a lymphocyte T percentage below the median (11%).
• Stroma Hot: Regions with a lymphocyte T percentage above the median (11%).
• We then combined these data points to classify all tumors slides as follows:
• Cold Tumor: Intratumoral TIL percentage ≤ 4% and stromal T lymphocyte percentage ≤ 11%
• Hot Tumor: Either intratumoral TIL percentage > 4% or stromal T lymphocyte percentage > 11%

We generated Kaplan-Meier survival curves using the specified cutoffs, patient outcome data (alive or dead), and the time from the study’s start to death.

First, we analyzed the expression of TILs (Fig. 9). Kaplan-Meier survival analysis revealed that the “TIL-cold” group experienced a rapid decline in survival (blue curve, Fig. 10A), reflecting a significantly lower survival rate compared to the “TIL-hot” group (red curve), which exhibited notably higher survival rates. This pattern persisted on the logarithmic scale (Fig. 10B).

The Log-Rank (Mantel-Cox) test further confirmed a significant difference in survival between the two cohorts (Fig. 10C), yielding a chi-square (X²) value of 34.324 and a p-value < 0.001, indicating robust statistical significance.

We evaluated the data extracted from the stroma only (Fig. 11). Kaplan-Meier survival analysis (Fig. 12A) demonstrated that the “stroma-cold” group had a rapid initial decline in survival, stabilizing at low levels, whereas the “stroma-hot” group showed a more gradual decline and higher survival rates. Therefore, observations show that patients with low expression of T lymphocytes in stroma have a worse outcome than those with high expression. It is again observed in “Logarithmic Survival Function” (Fig. 12B) that the survival of the “stroma-cold” group is lower than that of the “stroma-hot”.

The Log Rank (Mantel-Cox) test has an X² value of 2.904, a degree of freedom (df) of 1, and a p-value of 0.088. Although the p-value of 0.088 suggests that we cannot say with certainty that this difference is statistically significant, given that it is close to the significance level. This suggests that with a larger sample, the difference could become statistically significant.

Finally, we combined the results to evaluate whether high expression in both behaviors has positive outcomes as in the two separate regions (Fig. 13). The Kaplan-Meier survival curves (Fig. 14A) indicated that the “Tumor-cold” group had worse survival outcomes, with a faster decline and lower survival values compared to the “Tumor-hot” group, which maintained higher survival probabilities. The logarithmic curves also show this identical trend (Fig. 14B).

The Log Rank (Mantel-Cox) test (Fig. 14C) demonstrated high statistical significance (p < 0.001), and the high Chi-square value (11.642) indicates that the observed difference between the curves is significant. This suggests that low and high expression of T cells, both intratumorally and in the stroma, significantly impacts patient survival.

The Cox regression model confirmed that the percentage of TILs significantly predicted patient survival. The regression coefficient (B) for TILs was -2.574, with a standard error of 0.630. The Wald test yielded a value of 16.664, with a p-value < 0.001, indicating strong statistical significance. The hazard ratio (Exp(B)) was 0.076, suggesting that an increase in the percentage of TILs reduces the risk of death by 92.4%.

The Omnibus test confirmed the overall significance of the model (p-value < 0.001). Adding the TIL variable resulted in a X² change of 26.420, with a p-value < 0.001, demonstrating that including TILs significantly improved the model.

Other variables, such as tumor stage and grade, did not show significant p-values and did not contribute meaningfully to the model.

These findings underscore that the intratumoral percentage of TILs is a critical factor in patient survival, exerting a strong protective effect against the risk of death. (Detailed results are provided in Supplementary IV.)

Discussion

The immune system is a critical player in the defense against tumor cells, engaging innate immunity initially and recruiting adaptive immune responses. T lymphocytes are central to this process since they able to recognize and induce apoptosis in tumor cells. Numerous studies have demonstrated that a high density of T lymphocytes in tumors correlates with a better prognosis in OSCC. Given OSCC’s malignancy and resistance to conventional treatments, identifying reliable prognostic biomarkers and developing targeted immunotherapies are imperative. Traditional methods, such as IHC, while accurate, are labor-intensive and prone to inter- and intra-observer variability, underscoring the need for automated solutions.

Artificial intelligence (AI) models have emerged as transformative tools in histopathology, enabling automated identification and quantification of TILs on hematoxylin and eosin (H&E)-stained WSIs. This study demonstrates the effectiveness of an AI-based workflow using QuPath and the StarDist model to segment and detect T lymphocytes. By leveraging IHC-derived annotations as ground truth, we trained a StarDist model capable of performing “virtual immunohistochemistry” on H&E-stained WSIs, bypassing the need for traditional IHC while maintaining accuracy.

Previous studies have validated the potential of AI in histopathology. For instance, Martino et al. (2020) ²³ employed machine learning to predict the positivity of proliferation markers directly from H&E-stained tumor sections, and later, their deep-learning approach enhanced this capability ²⁴. Similarly, Saltz et al. (2018) used deep learning to quantify spatial patterns of lymphocytes in multiple cancer types ²⁵, while Shaban et al. (2019) introduced a digital score for TILs in OSCC ²⁶. Budginaite et al. efficiently used Micro-Net architecture to segment lymphocytic cells in H&E-stained colorectal and breast cancer tissue images ²⁷. These efforts underscore the growing application of AI in immune profiling and its prognostic significance. Building on these advances, our study integrates AI-driven cell detection with a user-friendly digital pathology platform, bridging computational power and clinical utility.

Our analysis confirms that intratumoral T lymphocytes are significantly associated with improved survival in OSCC. Kaplan-Meier curves demonstrated that patients with “TIL-hot” tumors have better survival rates than those with “TIL-cold” tumors. Although the prognostic significance of stromal T lymphocytes approached statistical significance, their role in isolation may require further exploration with larger datasets. These findings align with established literature highlighting the prognostic value of T lymphocytes, particularly CD3-positive subsets, in OSCC and other malignancies ^28,29.

One of the key strengths of our workflow is its simplicity and adaptability. By combining QuPath with StarDist, we developed a pipeline that can be seamlessly integrated into clinical laboratories ³⁰. The model was easily applied to TCGA WSIs, enabling high-throughput immune profiling. The flexibility to export models in portable formats enhances the potential for widespread adoption. However, our study has limitations. The current model is limited to single-class detection, focusing solely on CD3-positive cells. Expanding the model to identify multiple immune cell subsets would provide a more comprehensive analysis of the tumor immune microenvironment.

Future directions involve refining the model into a multi-class framework capable of detecting other key immune cell populations linked to patient outcomes, such as CD8+ and CD4+ cells. Additionally, incorporating advanced statistical techniques, larger and diverse datasets, and external validation steps could improve the model’s robustness and generalizability.

Conclusions

In conclusion, our study highlights the potential of AI-driven workflows for TIL detection in OSCC. The proposed methodology offers a scalable, efficient, and reproducible alternative to traditional IHC, enhancing diagnostic precision and prognostic stratification. This approach sets the stage for more personalized treatment strategies in OSCC and other cancers by reducing variability and manual labor.

ABBREVIATIONS

GLOSSARY

See Supplementary material (Glossary).

CONFLICT OF INTEREST STATEMENT

The authors declare no conflicts of interest.

FUNDING

Rare cancers of the head and neck: a comprehensive approach combining genomic, immunophenotypic and computational aspects to improve patient prognosis and establish innovative preclinical models – RENASCENCE “ (project code PNRR-TR1-2023-12377661)”.

AUTHORS CONTRIBUTION

AC: Formal Analysis, Investigation, Writing original draft, Software, Visualization. SV: Investigation, Writing original draft, Analysis. GI: Project administration. DR: Validation, Writing review, and editing. RMDC: Validation, Writing review, and editing. SS: Funding acquisition, Validation. FM: Conceptualization, Methodology, Data Curation, Supervision, Writing review and editing.

ETHICAL CONSIDERATION

The study was performed according to the Declaration of Helsinki and following Italian law for studies based only on retrospective analyses of routine archival FFPE tissue; written informed consent from the living patient, following the indication of Italian DLgs No. 196/03 (Codex on Privacy), as modified by UE 2016/679 law of the European Parliament and Commission, was obtained at the time of surgery.

History

Received: August 12, 2024

Accepted: December 10, 2024

Figures and tables

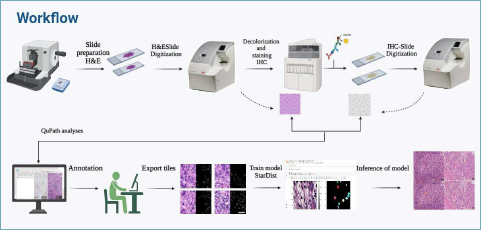

Graphical Abstract. The proposed workflow: from tissue slide preparation to model inference. (Created with BioRender.com)

Figure 1. Representative example of the aligned image pairs showing both the H&E images and the corresponding IHC images (Scale bar: 50 pixels).

Figure 2. An example of H&E tiles and masks exported from QuPath after annotation alignment (Scale bar: 50 pixels).

Figure 3. (A and C) IHC staining identifying CD3-positive lymphocytes. (B and D) Hematoxylin and eosin (H&E) staining was applied from the model, with recognized lymphocytes highlighted in yellow. Images C and D are magnified at 6.70x.(Scale bar:100 pixels).

Figure 4. An example of a WSI from the training dataset analyzed by HistoQC. (A) shows the original WSI; (B) shows the final mask generated by HistoQC. Areas colored in pink indicate sections considered suitable for analysis, while those in green were classified as unsuitable (Scale bar: 100 pixels).

Figure 5. An example of a WSI from the inference dataset analyzed by HistoQC. (A) Original WSI; (B) final mask generated by HistoQC. Areas colored in pink indicate sections considered suitable for analysis, while those in green were classified as unsuitable (Scale bar: 100 pixels).

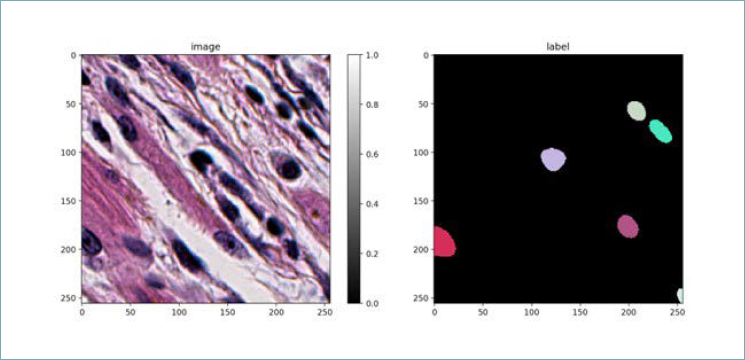

Figure 6. Example of a WSI image tile with the corresponding segmentation mask.

Figure 7. An example of model inference on WSI. (A) and (C) represent the original image with annotation ROIs. (B) and (D) are the same as in A and C WSI with overlaid model predictions (yellow overlays). (Scale bar: 100 pixels)

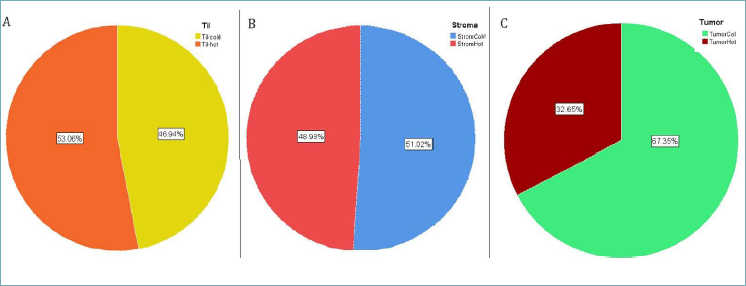

Figure 8. Percentage distribution of the three different categories analyzed. (A) Intratumor TIL is the subdivision between TIL-cold (53.06%) and TIL-hot (46.94%). (B) Stroma is the subdivision between StromaCold (48.98%) and StromaHot (51.02%). (C) Tumor is the subdivision between TumorCold (32.65%) and TumorHot (67.35%).

Figure 10. Representative images of TIL-hot and TIL-cold with red annotations indicating the tumor ROI. (A) TIL-hot at low magnification, (B) TIL-hot at 8x magnification, (C) TIL-cold at low magnification, (D) TIL-cold at 8.78x magnification. (Scale bar:100 pixels).

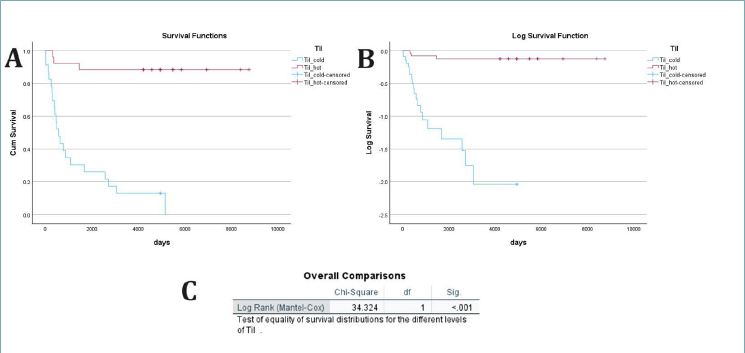

Fugue 10. (A) Survival Function: The vertical (Y) axis represents cumulative survival (probability of survival). The horizontal (X) axis represents time (in days). “Til-cold” curve (blue curve) percentage of T-lymphocytes 4%, and “Til-hot” (red curve) percentage of T-lymphocytes > 4%. Censored symbols indicate patients for whom no more data are available (censoring). (B) Logarithmic Survival Function: The vertical (Y) axis represents survival on a logarithmic scale. The horizontal (X) axis represents time (in days). The “Til-cold” curve (blue curve) percentage of T-lymphocytes 4%, and “Til-hot” (red curve) percentage of T-lymphocytes > 4%. (C) Log Rank (Mantel-Cox) test used to compare survival curves between two cohorts. The values presented include the Chi-square (X²), degrees of freedom (df), and the p-value, indicating the statistical significance of the differences observed between the curves.

Figure 11. Representative images of stroma-hot and stroma-cold with blu annotations indicating the stroma ROI. (A) stroma-hot at low magnification, (B) stroma-hot at 8.20x magnification, (C) stroma-cold at low magnification, (D) stroma-cold at 8.20x magnification. (Scale bar:100 pixels).

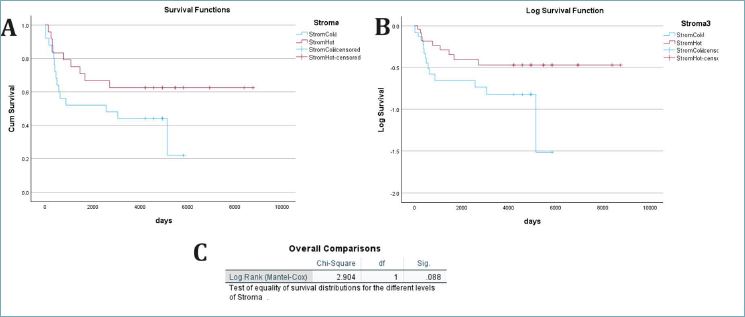

Figura 12. (A) Survival Function: The vertical (Y) axis represents cumulative survival (probability of survival). The horizontal (X) axis represents time (in days). “stroma-cold” curve (blue curve) percentage of T-lymphocytes 11%, and the “stroma-hot” (red curve) percentage of T-lymphocytes > 11%. Censored symbols indicate patients for whom no more data are available (censoring). (B) Logarithmic Survival Function: The vertical (Y) axis represents survival on a logarithmic scale. The horizontal (X) axis represents time (in days).“stroma-cold” curve (blue curve) percentage of T-lymphocytes 11%, and the “stroma-hot” (red curve) percentage of T-lymphocytes > 11%. (C) Log Rank (Mantel-Cox) test used to compare survival curves between two cohorts. The values presented include the Chi-square (X²), degrees of freedom (df), and the p-value, indicating the statistical significance of the differences observed between the curves.

Figure 13. Representative images of tumor-hot and tumor-cold with blu annotations indicating the stroma ROI and red annotations indicating the tumor ROI. (A) Tumor-hot at low magnification, (B) tumor-hot at 8.15x magnification, (C) tumor-cold at low magnification, (D) tumor-cold at 8.15x magnification. (Scale bar:100 pixels).

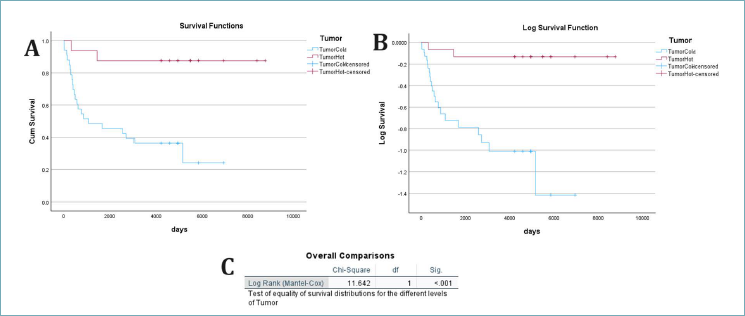

Figure 14. (A) Survival Function: The vertical (Y) axis represents cumulative survival (probability of survival). The horizontal (X) axis represents time (in days). The blue curve represents “Tumor-cold” (Til 4% and stroma 11%); the red curve represents “Tumor-hot” (Til > 4% and stroma > 11%). Censored symbols indicate patients for whom no more data are available (censoring). (B) Logarithmic Survival Function: The vertical (Y) axis represents survival on a logarithmic scale. The horizontal (X) axis represents time (in days). The blue curve represents “Tumor-cold” (Til 4% and stroma 11%); the red curve represents “Tumor-hot” (Til > 4% and stroma > 11%). (C) Log Rank (Mantel-Cox) test used to compare survival curves between two cohorts. The values presented include the Chi-square (X²), degrees of freedom (df), and the p-value, indicating the statistical significance of the differences observed between the curves.

Table I. Versions of specific packages used for model training.

Package	Version
StarDist	(0.9.1)
csbdeep	(0.8.0)
scikit-image	(0.19.3)
numpy	(1.25.2)
scipy	(1.11.4)
matplotlib	(3.7.1)
tifffile	(2024.6.18)
tqdm	(4.66.4)
gputools	0. 2. 14

Table II. Study population from TCGA. Synoptic report. All cases were OSCC.

Age	Mean	64.82
	Median	65.5
	Range	24-87
Sex	F	15
	M	35
Stage	I	1
	II	13
	III	5
	IV	25
Grade	G1	12
	G2	29
	G3	8
Days to death	Mean	3248.62
	Median	4211
	Range	11-8760
Vital Status	Alive	25
	Dead	25
